Arnold Motorpost circuit board upgrade

Description

Content:

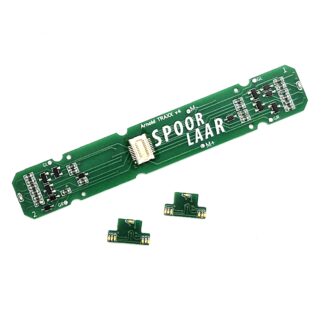

• 1x MTC14 circuit board
• 2x LED board
• 1x MTC14 to NEXT18 adapter
• 1x cable

Manual V2: follows

Assembly of V1:

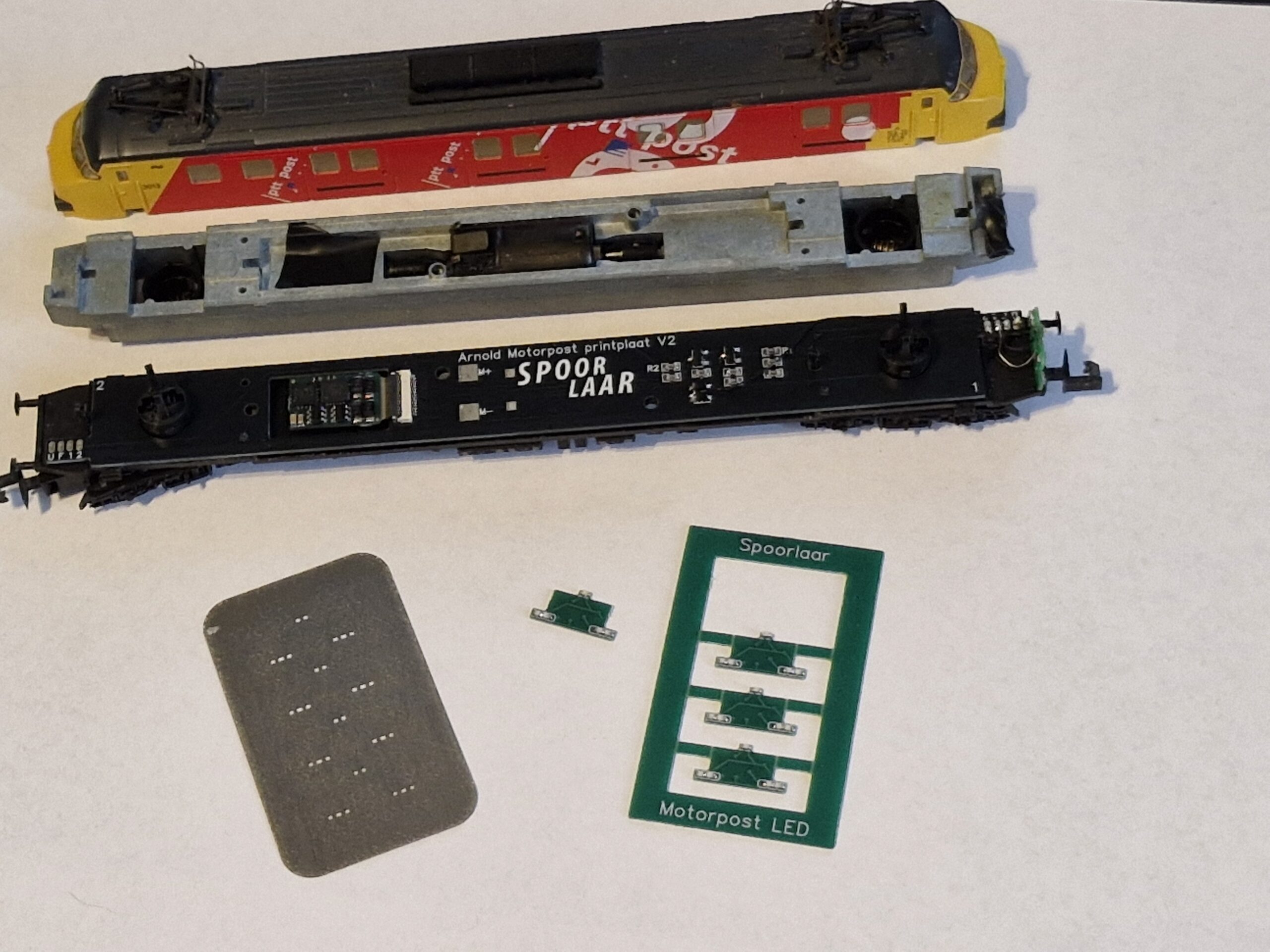

Before placing the circuit board, solder the LED PCB to the ends of the circuit board with the wire provided (The different solder pads have a number or letter). Bend the LED PCB 90 degrees so that it is now forward. Now insert the circuit board into the plastic chassis. Connect the decoder board to the circuit board with the flat wire and install the decoder. The metal chassis can now be mounted after applying a piece of insulating tape to the areas where the LED prints and the space above the decoder. Remove the light guides from the hood and fill the holes with Crystal Klear. The cap can now be installed.

Function outputs:

Front – front lights for

Rear – front lights rear

Aux 1 – center pit front

Aux 2 – center pit rear

Aux 3 – marker lights for

Aux 4 – rear tail lights
